鐵氧體磁芯廠家
手機：16575896607
微信：11787687
QQ：11787687
郵箱：11787687@qq.com

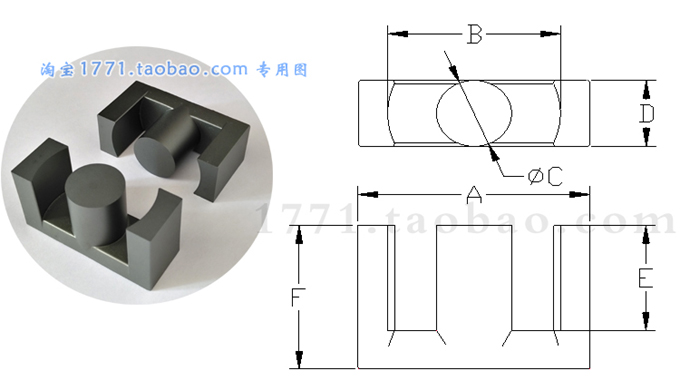

| 型號 | 毛重 | 尺寸(mm) | |||||
| A | B min | C | D | E | F | ||
| EC28/20 | 25 | 28.5±0.5 | 21.8 | 9.9±0.3 | 11.4±0.3 | 6.0±0.2 | 10.0±0.2 |
| EC28/28 | 33 | 28.5±0.5 | 21.8 | 9.9±0.3 | 11.4±0.3 | 10.0±0.2 | 14.0±0.2 |
| EC28/34 | 36 | 28.5±0.5 | 21.8 | 9.9±0.3 | 11.4±0.3 | 13.0±0.2 | 17.0±0.2 |
| EC29/28 | 33.6 | 29.4±0.6 | 22.3 | 9.9±0.3 | 11.4±0.3 | 10.0±0.2 | 14.0±0.2 |
| EC29/34 | 37 | 29.4±0.5 | 22.3 | 9.9±0.3 | 11.4±0.3 | 13.0±0.2 | 17.0±0.2 |
| EC32/24 | 48 | 31.8±0.5 | 26.6 | 13.2±0.2 | 20.2±0.3 | 9.2±0.2 | 12.0±0.2 |
| ETD29/16 | 31.2 | 29.8±0.8 | 22 | 9.5±0.3 | 9.5±0.3 | 11.0±0.2 | 15.8±0.2 |
| EC34/32 | 36.5 | 34.0±0.5 | 22 | 15.6±0.2 | 15.6±0.3 | 10.6±0.2 | 16.0±0.2 |
| ETD34/35 | 44.4 | 34.2±0.8 | 25.6 | 10.8±0.3 | 10.8±0.3 | 12.3±0.3 | 17.5±0.3 |
| EC35/30 | 43.6 | 35.0±0.7 | 25.6 | 11.3±0.4 | 11.3±0.4 | 10.0±0.3 | 15.0±0.3 |
| EC35/31 | 44 | 35.3±0.6 | 26.2 min | 11.3±0.3 | 11.3±0.3 | 10.0±0.25 | 15.6±0.5 |
| EC35/35 | 48 | 35.3±0.6 | 26.0 min | 11.3±0.3 | 11.3±0.3 | 12.1±0.2 | 17.6±0.2 |
| EC35/42 | 54 | 35.0±0.7 | 25.6 | 11.3±0.4 | 11.3±0.4 | 15.0±0.3 | 21.0±0.3 |
| EC35/43 | 55 | 35.0±0.7 | 25.6 | 11.3±0.4 | 11.3±0.4 | 15.5±0.3 | 21.5±0.3 |
| EC36/42 | 56 | 36.0±0.7 | 27.0 min | 11.3±0.3 | 11.3±0.3 | 15.0±0.3 | 21.0±0.3 |
| EC36/43 | 56.4 | 36.0±0.7 | 26.2 | 11.3±0.4 | 11.3±0.4 | 15.5±0.3 | 21.5±0.3 |
| EC39/40 | 63 | 39.1±0.9 | 29.1 | 12.5±0.3 | 12.5±0.3 | 14.5±0.3 | 20.0±0.3 |
| EC39/42 | 65 | 39.1±0.9 | 29.1 | 12.5±0.3 | 12.5±0.3 | 15.5±0.3 | 21.0±0.3 |
| EC39/45 | 71 | 39.1±0.9 | 29.3 min | 12.5±0.3 | 12.5±0.3 | 17.3±0.3 | 22.5±0.3 |
| EC40/45 | 82 | 40.0±0.8 | 28.8 | 13.3±0.3 | 13.3±0.3 | 15.5±0.3 | 22.5±0.3 |
| EC41/45 | 83 | 41.0±0.8 | 29.8 | 13.1±0.3 | 13.1±0.3 | 15.5±0.3 | 22.5±0.3 |
| EC42/41/14.8 | 88 | 42.0±1.0 | 31.5 | 14.7±0.3 | 14.8±0.3 | 15.0±0.3 | 20.5±0.3 |
| EC42/43/14.8 | 92 | 42.0±1.0 | 31.5 | 14.7±0.3 | 14.8±0.3 | 16.0±0.3 | 21.5±0.3 |
| EC42/43/15.2 | 97.6 | 42.0±0.8 | 31.0 min | 15.2±0.3 | 15.2±0.3 | 15.6±0.3 | 21.5±0.3 |
| EC42/20 | 128 | 42.0±0.8 | 31.8 min | 17.3±0.3 | 19.6±0.4 | 15.5±0.3 | 22.0±0.3 |
| EC42/44/15.2 | 100 | 42.0±0.8 | 31.0 min | 15.2±0.3 | 15.2±0.3 | 15.5±0.25 | 22.0±0.25 |
| EC42/45/15.2 | 104 | 42.0±0.8 | 31.0 min | 15.2±0.3 | 15.2±0.3 | 16.0±0.3 | 22.5±0.3 |
| EC43/43/14.8 | 95 | 43.0±0.8 | 32.1 min | 14.8±0.3 | 14.8±0.3 | 15.5±0.3 | 21.5±0.3 |
| EC43/45/14.8 | 98 | 43.0±1.0 | 32.5 | 14.8±0.3 | 14.8±0.3 | 16.4±0.3 | 22.5±0.3 |
| EC43/45/15.2 | 103 | 43.9±0.8 | 32.1 min | 15.2±0.3 | 15.2±0.3 | 15.6±0.3 | 22.5±0.3 |
| EC43/47/15.2 | 110 | 43.9±0.6 | 32.2 min | 15.2±0.3 | 15.2±0.3 | 17.0±0.3 | 23.8±0.3 |
| EC44/45/14.8 | 100 | 44.0±1.0 | 32.5 min | 14.8±0.3 | 14.8±0.3 | 16.5±0.3 | 22.4±0.3 |
| EC44/47 | 109 | 44.0±1.0 | 32.5 | 15.2±0.3 | 15.3±0.3 | 16.5±0.3 | 23.5±0.3 |
| EC46/47 | 112 | 46.0±1.0 | 34 | 15.2±0.3 | 15.3±0.3 | 16.7±0.3 | 23.5±0.3 |
| EC49/50 | 133 | 48.7±1.1 | 36.1 | 16.3±0.4 | 16.4±0.5 | 18.1±0.3 | 24.7±0.3 |
| EC49/54 | 150 | 49.0±0.9 | 36.3 min | 16.3±0.3 | 16.3±0.3 | 20.4±0.3 | 27.0±0.3 |
| EC60/62 | 292 | 60.0±1.1 | 44.8 min | 21.6±0.5 | 21.6±0.5 | 22.5±0.4 | 31.0±0.2 |
